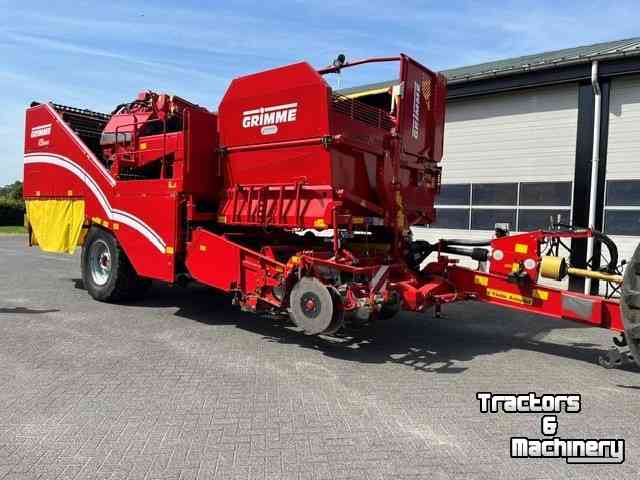

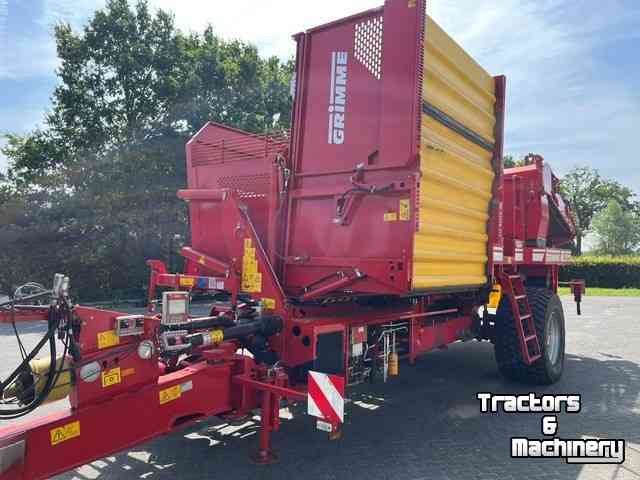

Grimme SE 150-60 UB XXL wielaandrijving
Potato harvester- Item:
- 851606
- Condition:
- Used
- Manufacturer:
- Grimme
- Model:
- SE 150-60 UB XXL wielaandrijving
- Building year:
- 2017
- Number of rows:
- 2
- Rear tires:
- 710/50R30.5
- Country:
- Netherlands (the)
- Price:
- on request
- K80 ball coupling, 540 rpm drive
- Row spacing 75 cm, working width 58 cm
- 3-piece harvesting blade, Diabolo blades 390 mm
- Separately supplied adjustable center blade
- Mechanical harvesting depth adjustment
- Automatic back pressure relief, automatic center steering of the harvesting unit
- 4 side discs and a second foliage disc on the right
- Stainless steel lining in the harvesting channel
- Hydraulically driven and speed-adjustable swing beater in the 1st
screening chain
- 1 leaf scraper shaft under the leaf mat, hydraulically driven
- Sludge control on the first cleaner; with electric speed adjustment, including automatic
acceleration of the first cleaner and sludge control of the second screen chain
- XXL cleaner on UB model with 3 star beds/hedgehog belts; star bed/hedgehog belt of
the first cleaner is 300 mm longer and the second hedgehog belt is 300 mm wider. Includes electric
speed adjustment for 4 brushes/finger belts and incl. hydraulic
height adjustment of double scraper rollers in the first cleaner
- Electric speed adjustment for the first and second cleaners
- Automatic hopper filling, including automatic hopper filling conveyor and
filling optimization
- 7.5-metric-ton hopper with fabric liner and wide wheel axle
- Hopper outlet with hydraulically adjustable articulation section
- Automatic center alignment of wheel axle steering and leveling
- Hydraulic wheel drive with wide-angle PTO and hydraulic clutch
- Tires: 710/50R30.5 Michelin Cargo X-Bib
- Grimme 7’’ Multiplexer Video System with 5 high-quality cameras,
- Visual-Protect: CAN bus-controlled video monitoring system

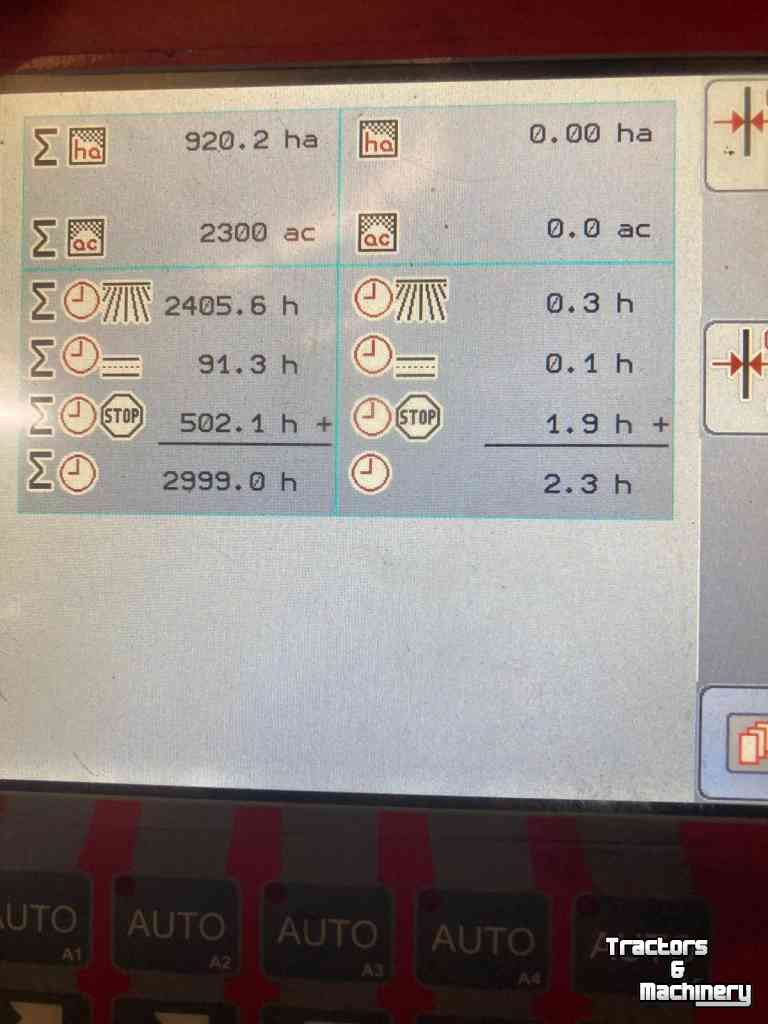

- VC 50 control terminal
- 1st screen chain pitch 40 mm with closure
- Speed of 1st screening chain: normal
- 2nd screening chain pitch: 32 mm with overlapping joints
- Large leaf belt pitch: 200 mm
- 1st spiked belt pitch 35 mm, V-profile
- Scraper for 1st cleaner: smooth rollers
- Cleaning device in spiked belt of 1st cleaner
- 2nd spiked belt, pitch 35 mm, V-profile
- Scraper for 2nd cleaner: smooth rollers
- Cleaning device in spiked belt of 2nd cleaner
- 3rd hedgehog belt under UB cleaner, 35 mm pitch with V-profile bars
- Waste belt speed: normal
- Air braking
- Very neat machine, well-maintained
Een nieuwe Grimme SE 150-60 UB XXL aardappelrooier
- Kogelkoppeling K80, aandrijving 540 omw/min
- Rijenafstand 75 cm, opname 58 CM
- 3 delige rooischaar, Diabolo’s 390 mm
- Los meegeleverd verstelbaar middenschaar
- Mechanische rooidiepteverstelling
- Automatische rugontlasting, automatisch middensturen opname-unit
- 4x zijschijven en een 2de loofschijf rechts
- Rvs beplating in opnamekanaal
- Hydraulisch aangedreven en in snelheid verstelbare swingklopper in 1ste
zeefketting
- 1 loofafstrijkas onder loofmat, hydraulisch aangedreven
- Slibcontrole 1ste reiniger, bij elektrische snelheidsverstelling incl. automatische
versnelling van de 1ste reiniger en slibcontrole van de 2de zeefketting
- XXL-reiniger bij UB met 3 sterrenbedden/egelbanden, sterrenbed/egelband van
1ste reiniger 300 mm langer en de 2de egelband 300 mm breder. Incl. elektrische
snelheidsverstelling voor 4 borstels/vingerbanden en incl. hydraulische
hoogteverstelling van dubbele afstrijkrollen in de 1ste reiniger
- Elektrische snelheidsverstelling voor de 1ste en 2de reiniger
- Automatische bevulling van de bunker incl. bunkervulband automaat en
bevuloptimering
- 7,5 tons bunker met doek, en brede wielas
- Bunkeruitloop met hydraulisch verstelbaar knikdeel
- Automatische middenstelling wielasbesturing en vlakstelling
- Hydraulische wielaandrijving met groothoekaftakas en hydr. koppeling
- Banden 710/50R30.5 Michelin Cargo X-Bib
- Grimme 7’’ Multiplexer Video-Systeem met 5 high-Quality camera´s,
- Visual-Protect: Can Bus gestuurd video controlesysteem
- Bedieningsterminal VC 50 terminal
- 1ste zeefketting steek 40 mm met sluiting
- Snelheid 1ste zeefketting normaal
- 2de zeefketting steek 32 mm met overlapverbinding
- Grote loofband steek 200 mm
- 1ste egelband steek 35 mm V-profiel
- Afstrijker 1ste reiniger: gladde rollen
- Reinigingsinrichting in egelband 1ste reiniger
- 2de egelband steek 35 mm V-profiel
- Afstrijker 2de reiniger: gladde rollen
- Reinigingsinrichting in egelband 2de reiniger
- 3de egelband onder UB reiniger steek 35 mm met spijlen V-profiel
- Snelheid afvalband normaal
- Luchtberemming
- Zeer nette machine goed onderhouden
