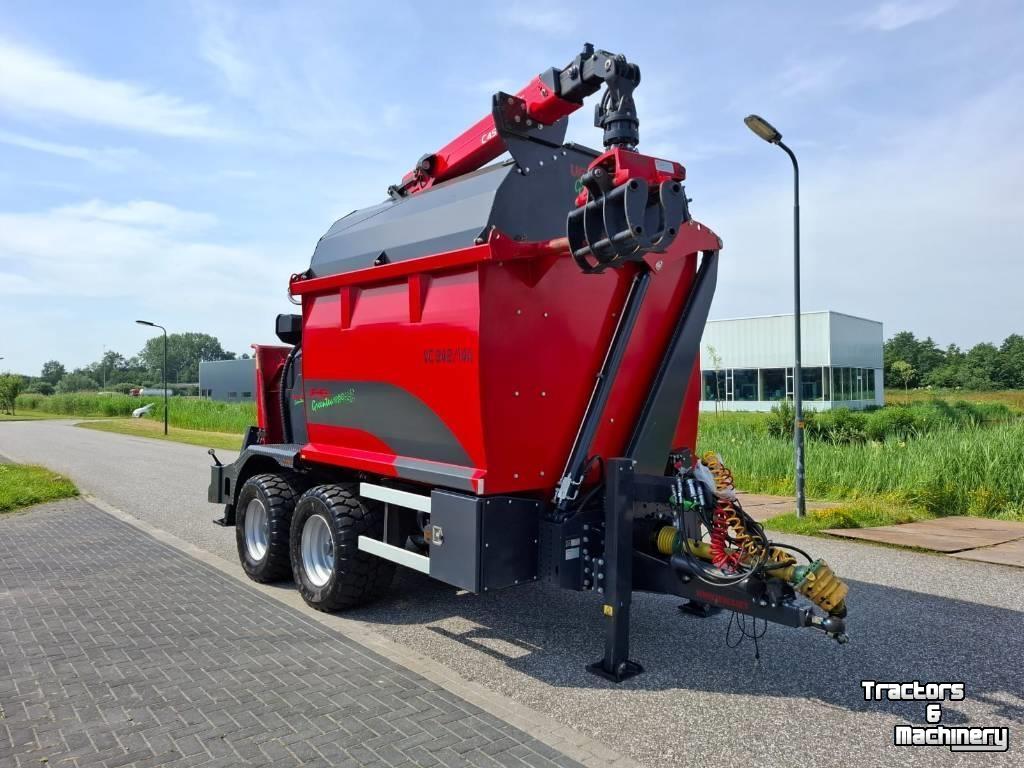

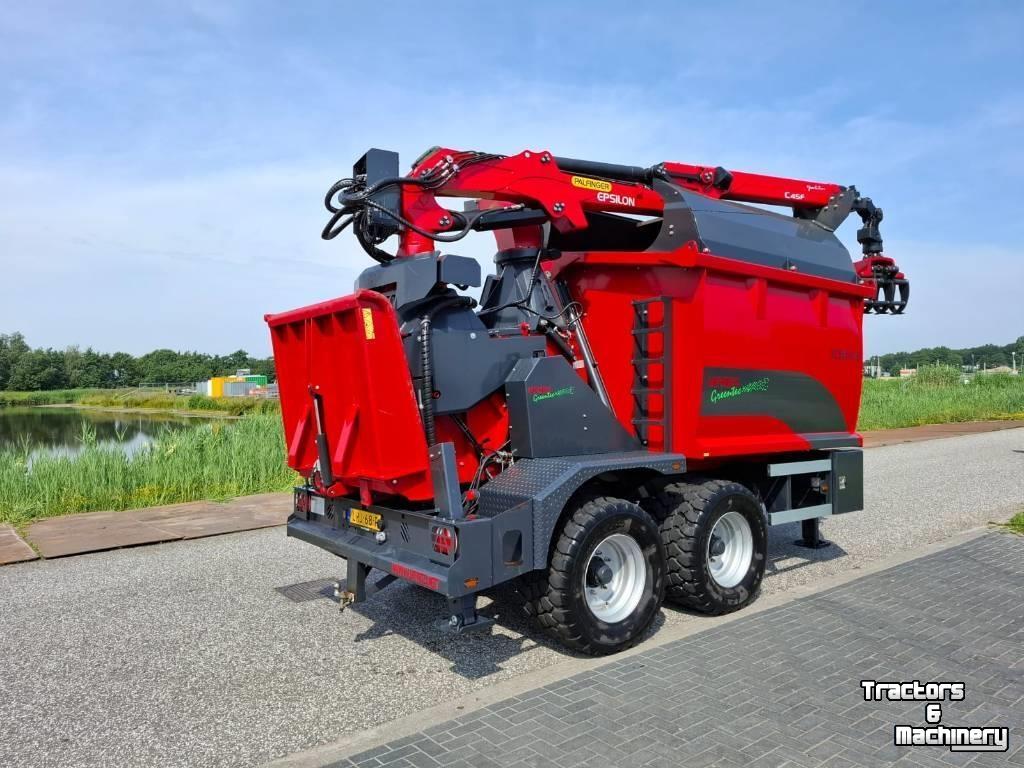

Name: Greentec 942/14 A
Brand: Greentec
SKU: 847977
Availability: InStock

Item:: 847977
Manufacturer:: Greentec
Model:: 942/14 A
Building year:: 2023
Country:: Netherlands (the)
Price:: on request
Vat:: Excl. 21%

Optional extras

Pull-type model

Pto drive

Equipped with chip-box / chip-trailer

Description

Show translation Show original description

Greentec 942/14A Multi-Function Shredder (Rear Feed) Year of manufacture: 2023 Hours: approx. 300 Technical specifications: 2 feed rollers Feed opening dimensions: 620 x 710 mm Feed channel dimensions: 550 x 710 mm
Max. hardwood feed: Ø 300 mm
Max. softwood feed: Ø 550 mm
Drum: Ø 960 x 730 mm
Upper roller: Ø 430 x 710 mm
Lower roller: Ø 300 x 710 mm
Number of blades: 3
Number of counter blades: 1 Max. chip length: 25 mm
Power requirement: 100–220 pk
Capacity up to: 100 m³/hour
Pendulum tandem, 4-wheel braked Tires 560/45R22.5 Maxxam MS961R
Bucket capacity: 14 m³
Maximum allowable weight: 20 metric tons
Tandem load capacity: 16 metric tons Hydraulic front stabilizer leg
All-around LED lighting in accordance with regulations
Steel toolbox on both sides, including lock with key
Continuous PTO shaft under the dump body
Freewheel in the drive housing (full oil bath)
Radio-controlled remote (GCS1.1) for shredder functions
- Spreader flap up/down
- Rotate chute
- Chute up/down
- Inlet/outlet - Open top roller or apply additional downward pressure Hydraulically tiltable Venturi discharge hopper 942 Air-braked, 2-line system Combi discharge pipe; hydraulic; rotatable & without spreader flap High-tip bucket 13 m³, left-hinged with overflow flap Standard PTO drivetrain 1000 rpm Palfinger C45F84 timber crane Epsilon GV6 rotator and 2 LED work lights Reach (m): 8.4 Telescopic length (m): 3.4 Gross lifting moment (kNm): 71
Net lifting moment (kNm): 51
Lifting capacity at full extension (kg) without grapple and rotator: 540 Gross swing torque (kNm): 18
Swing range: 340°
Operating pressure (bar): 170
Required pump capacity (l/min): 100

Greentec 942/14A snippercombi (achterinvoer)

Bouwjaar: 2023
Urenstand: ca. 300
Technische specificaties:
2-invoerrollen
Afmeting invoer: 620 x 710 mm
Afmeting invoerkanaal: 550 x 710 mm
Max. invoer hardhout: Ø 300 mm
Max. invoer zachthout: Ø 550 mm
Drum: Ø 960 x 730 mm
Bovenrol: Ø 430 x 710 mm
Onderrol: Ø 300 x 710 mm
Aantal messen: 3
Aantal tegenmessen: 1
Max. snipperlengte: 25 mm
Benodigd vermogen: 100 - 220 pk
Capaciteit tot: 100m3/uur
Pendeltandem, 4- wiel geremd
Banden 560/45R22,5 Maxxam MS961R
Bakinhoud: 14 m3
Totaal toelaatbaar gewicht max. 20 ton
Draagvermogen tandem 16 ton
Hydraulische uitschuifpoot voor
Rondom led verlichting volgens richtlijnen
Stalen gereedschapkist aan beide zijden, incl. slot met sleutel
Doorlopende aftakas onder kieper
Vrijloop in de aandrijfkast (vol oliebad)
Radiografische afstandsbediening (GCS1.1) versnipperaar functies
- Strooiklep op/neer
- Pijp draaien
- Pijp op/neer
- In/uitvoer
- Bovenrol openen of extra druk naar beneden
Hydraulisch kantelbare Venturi uitblaastrechter 942
Lucht geremd, 2 leiding systeem
Combi uitblaaspijp; hydraulisch; draaibaar & zonder strooiklep
Hoogkiepbak 13m3 links scharnierend met overstortklep
Standaard aandrijflijn PTO 1000 rpm

Palfinger C45F84 houtkraan
Epsilon GV6 rotator en 2 led werklichten
Reikwijdte (m): 8,4
Telescopische lengte (m): 3,4
Hijsmoment bruto (kNm): 71
Hijsmoment netto (kNm): 51
Hijskracht volledig uitgeschoven (kg) zonder grijper en rotator: 540
Zwenkmoment bruto (kNm): 18
Zwenkbereik: 340°
Werkdruk (bar): 170
Benodigd pomp capaciteit (l/min): 100
