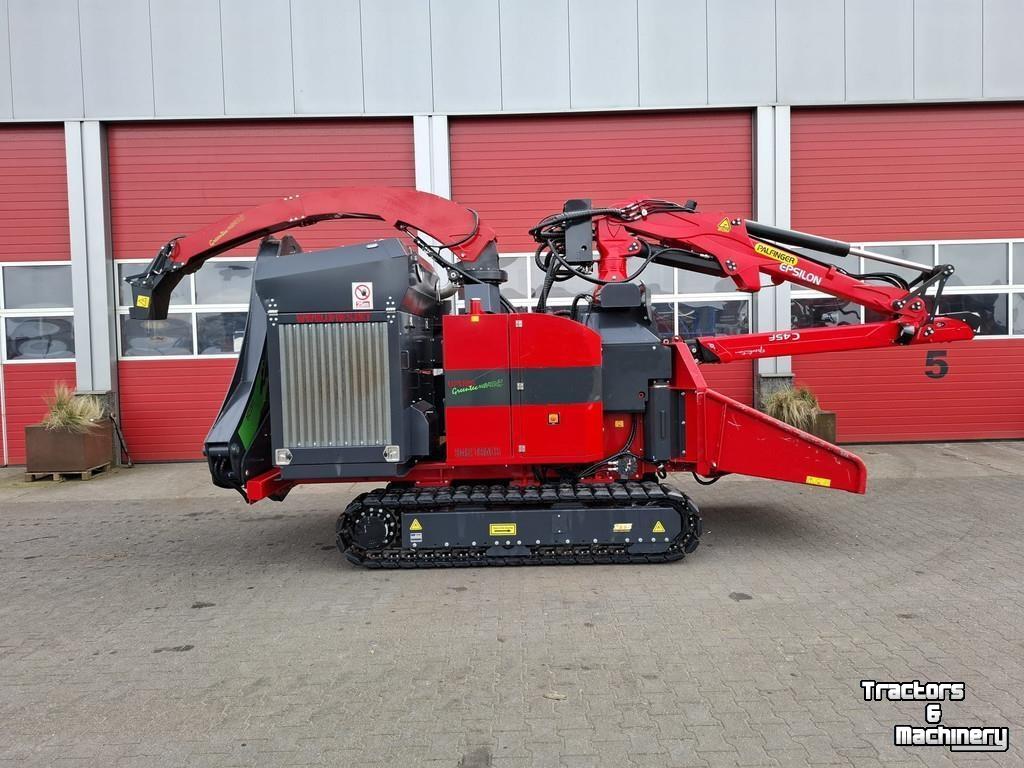

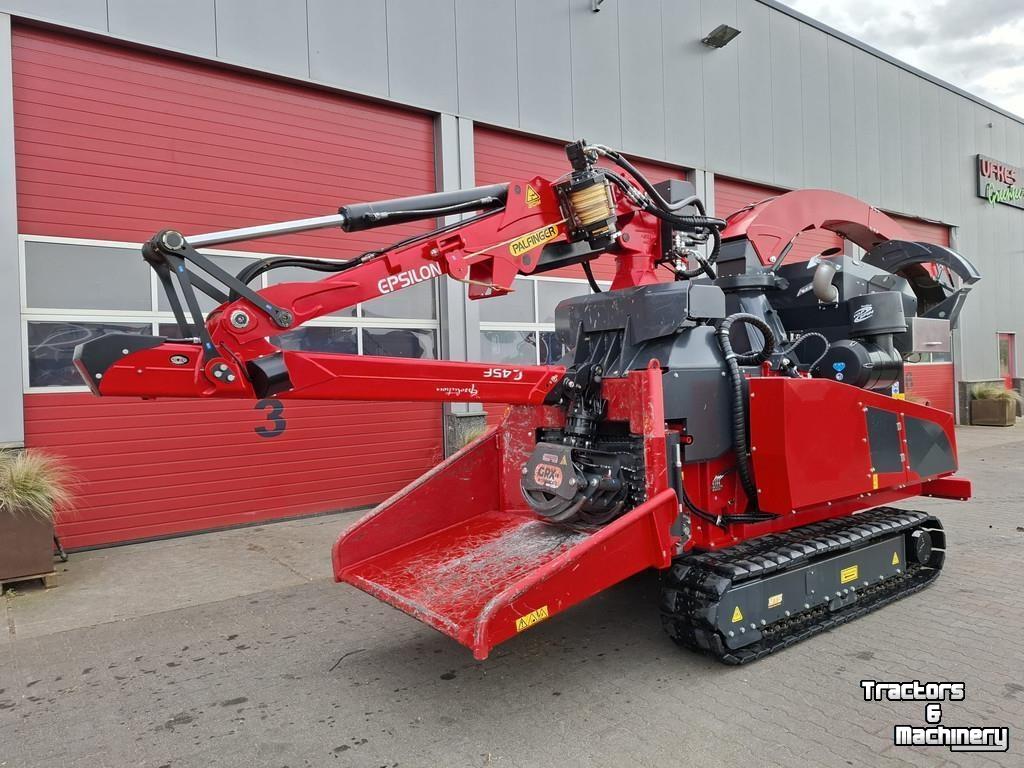

Greentec 942 Track
Wood shredder- Item:
- 838283
- Manufacturer:
- Greentec
- Model:
- 942 Track
- Building year:
- 2025
- Country:
- Netherlands (the)
- Price:
- on request
- Vat:
- Excl. 21%
Year of manufacture: 2025
Engine hours: 154
Shredding hours: 64 hours Technical specifications: 4 feed rollers Feed opening dimensions: 620 x 1060 mm Feed chute dimensions: 550 x 710 mm Max. Hardwood feed diameter: Ø 300 mm
Max. softwood feed diameter: Ø 550 mm
Drum: Ø 960 x 730 mm
Upper feed roller diameter (double) Ø 430 x 710 mm
Lower feed roller diameter Ø 300 x 710 mm
Left and right feed roller diameters Ø 300 x 610 mm
Number of blades 3 Number of counter blades 1 Engine: John Deere 300 PK Tier 4 Final / Stage 5 Weight 8,350 kg Track drive specifications: Total track length 2,784 mm, 400 mm wide. Drive torque 6,900 Nm. 2 mechanical track speeds, with integrated brakes. Controls: Greentec Control System 3.0 touchscreen; mounted in the engine compartment Radio-controlled remote Log crane:
Palfinger C45F84 log crane
Reach (m): 8.4
Telescopic length (m): 3.4
Gross lifting moment (kNm): 71
Net lifting moment (kNm): 51
Lifting capacity when fully extended (kg) without grapple and rotator: 540
Rotator
TG 22 4-tooth grapple Gator Log Splitter: Splitting force 20 metric tons at 200 bar
950 mm between the blades Winch: Novawinch HEN12000 Maximum pulling force: 5,448 kg (12,000 lbs) Rope length: 30 m = More Information = Power: 221 kW (300 PK) Warranty: None Price: Upon request
Greentec 942 Track (demomachine)
Bouwjaar: 2025
Motoruren: 154
Versnipperuren: 64 uur
Technische gegevens:
4 invoerrollen
Afmeting invoer 620 x 1060 mm
Afmeting invoerkanaal 550 x 710 mm
Max. Diameter invoer hardhout Ø 300 mm
Max. Diameter invoer zacht hout Ø 550 mm
Drum Ø 960 x 730 mm
Diameter bovenste invoerrollen (dubbel) Ø 430 x 710 mm
Diameter onderste invoerrollen Ø 300 x 710 mm
Diameter invoerrollen links en rechts Ø 300 x 610 mm
Aantal messen 3
Aantal tegenmessen 1
Motor John Deere 300 PK Tier 4 Final / Stage 5
Gewicht 8350kg
Specificatie rupsaandrijving:
Totale rupslengte 2784 mm, 400 mm breed.
Aandrijfkoppel 6900 Nm.
2 mechanische rupsversnellingen, met geïntegreerde geïntegreerde rem.
Bediening:
Greentec Control System 3.0 touchscreen; geplaatst in motorbehuizing
Radiografische afstandsbediening
Houtkraan:
Palfinger C45F84 houtkraan
Reikwijdte (m): 8,4
Telescopische lengte (m): 3,4
Hijsmoment bruto (kNm): 71
Hijsmoment netto (kNm): 51
Hijskracht volledig uitgeschoven (kg) zonder grijper en rotator: 540
Rotator
TG 22 4-tandengrijper
Gator Houtklover:
Kloofkracht 20 Ton bij 200 bar
950 mm tussen de messen
Lier:
Novawinch HEN12000
Maximale trekkracht: 5448 kg (12000lbs)
Touwlengte: 30 m
= Meer informatie =
Vermogen: 221 kW (300 PK)
Garantie: Geen
Prijs: Op aanvraag
