Greentec 942 Track
Wood Chipper- Item:
- 838283
- Condition:
- Used
- Manufacturer:
- Greentec
- Model:
- 942 Track
- Building year:
- 2025
- Engine hours:
- 154
- Engine power:
- 300 Hp
- Country:
- Netherlands (the)
- Price:
- on request
Year built: 2025
Engine hours: 154
Shredding hours: 64 hours
Technical data:
4 feed rollers
Feed dimensions 620 x 1060 mm
Feed channel dimensions 550 x 710 mm
Max. Feed diameter hardwood Ø 300 mm
Max. Feed diameter softwood Ø 550 mm
Drum Ø 960 x 730 mm
Diameter upper feed rollers (double) Ø 430 x 710 mm
Diameter lower feed rollers Ø 300 x 710 mm
Feed rollers diameter left and right Ø 300 x 610 mm
Number of blades 3
Number of counter blades 1
Engine John Deere 300 HP Tier 4 Final / Stage 5
Weight 8350kg
Track drive specification:
Overall track length 2784 mm, 400 mm wide.
Drive torque 6900 Nm.
2 mechanical track gears, with integrated integral brake.
Operation:
Greentec Control System 3.0 touchscreen; placed in engine housing
Radio remote control

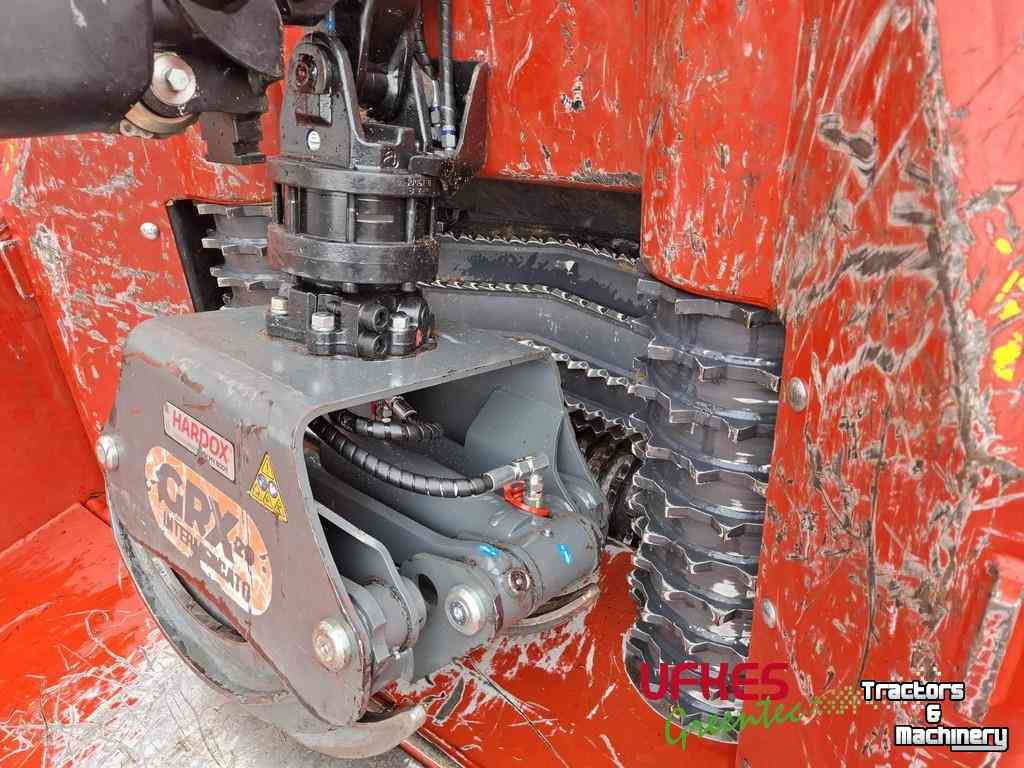

Timber crane:

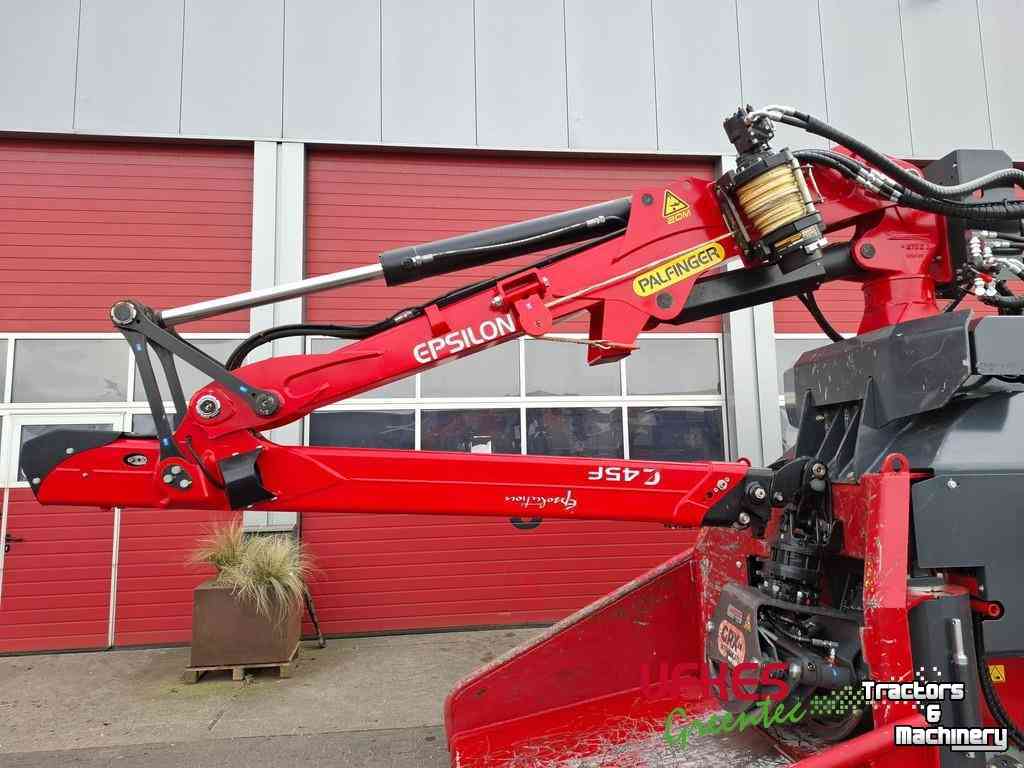

Palfinger C45F84 timber crane
Outreach (m): 8.4
Telescopic length (m): 3.4
Gross lifting moment (kNm): 71
Lifting moment net (kNm): 51
Lifting force fully extended (kg) without gripper and rotator: 540
Rotator
TG 22 4-tooth gripper
Gator Wood Cutter:
Splitting force 20 Ton at 200 bar
950 mm between blades
Winch:
Novawinch HEN12000
Maximum pulling force: 5448 kg (12000lbs)
Rope length: 30 m
= More information =
Power: 221 kW (300 HP)
Warranty: None
Price: On request
Greentec 942 Track (demomachine)
Bouwjaar: 2025
Motoruren: 154
Versnipperuren: 64 uur
Technische gegevens:
4 invoerrollen
Afmeting invoer 620 x 1060 mm
Afmeting invoerkanaal 550 x 710 mm
Max. Diameter invoer hardhout Ø 300 mm
Max. Diameter invoer zacht hout Ø 550 mm
Drum Ø 960 x 730 mm
Diameter bovenste invoerrollen (dubbel) Ø 430 x 710 mm
Diameter onderste invoerrollen Ø 300 x 710 mm
Diameter invoerrollen links en rechts Ø 300 x 610 mm
Aantal messen 3
Aantal tegenmessen 1
Motor John Deere 300 PK Tier 4 Final / Stage 5
Gewicht 8350kg
Specificatie rupsaandrijving:
Totale rupslengte 2784 mm, 400 mm breed.
Aandrijfkoppel 6900 Nm.
2 mechanische rupsversnellingen, met geïntegreerde geïntegreerde rem.
Bediening:
Greentec Control System 3.0 touchscreen; geplaatst in motorbehuizing
Radiografische afstandsbediening
Houtkraan:
Palfinger C45F84 houtkraan
Reikwijdte (m): 8,4
Telescopische lengte (m): 3,4
Hijsmoment bruto (kNm): 71
Hijsmoment netto (kNm): 51
Hijskracht volledig uitgeschoven (kg) zonder grijper en rotator: 540
Rotator
TG 22 4-tandengrijper
Gator Houtklover:
Kloofkracht 20 Ton bij 200 bar
950 mm tussen de messen
Lier:
Novawinch HEN12000
Maximale trekkracht: 5448 kg (12000lbs)
Touwlengte: 30 m
= Meer informatie =
Vermogen: 221 kW (300 PK)
Garantie: Geen
Prijs: Op aanvraag
