Name: Greentec Cheetah 30/13 combi
Brand: Greentec
SKU: 834665
Availability: InStock

Item:: 834665
Manufacturer:: Greentec
Model:: Cheetah 30/13 combi
Building year:: 2018
Tires:: 560/45R22.5 BKT FL-630
Volume:: 13.00 M3
Country:: Netherlands (the)
Price:: on request

Optional extras

Pull-type model

Pto drive

Equipped with chip-box / chip-trailer

Hydraulic loading-crane

Hydraulic stabilizers

Description

Show translation Show original description

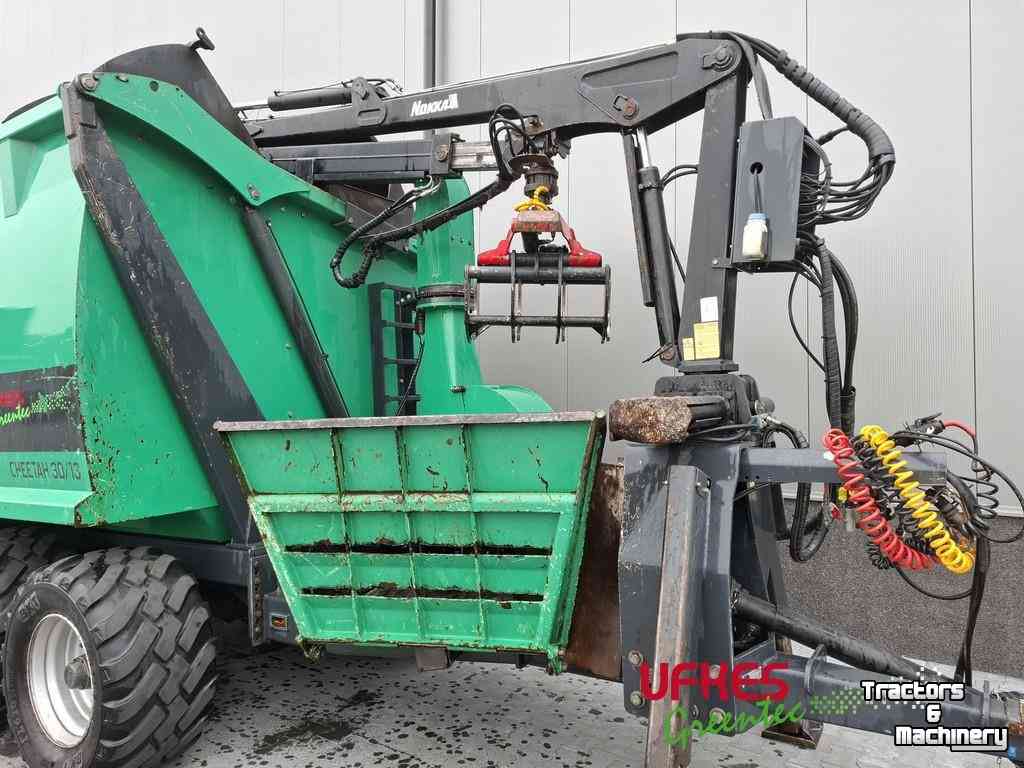

Greentec Cheetah 30/13 chipper combi (2018)
Hours of operation:

Technical specifications
Feed dimensions 300 x 580 mm
Feed hopper dimensions 300 x 320 mm
Hopper suitable for crane feed, hydraulic folding
Disc 960 x 58 mm
Number of blades 2
Number of counter knives 3
Cutting length 12 - 22 mm
PTO drive 540eco/1000/ 1000 eco rpm
Chopper disc speed 750 rpm
Input speed up to 0.7 m/s
Capacity up to 40 m3/hour
Power requirements 80-200 hp
Bucket capacity 13 m³
Carrying capacity tandem 16 tons
Hinge height 3.00 m
Tires 560/45R22.5 BKT FL-630

Nokka HK 4872 timber crane
Lifting moment gross 48 kNm
Lifting capacity at 4 meters 892 kg
Maximum reach 7.2 meters
Rotator NR 5
Greentec Crab 8 teeth gripper
Swing torque gross 12 kNm

Control
GCS controls ( Greentec Control System )
Radio remote control

Action sign with LED lighting.
1.2mtr.wide 2mtr.high.
Automatic on/off when folding up or down.

= More information =

Damage: damage free
Warranty: None

Representative: Sales Department (+31 (0)512 584 760)
Greentec Cheetah 30/13 snippercombi (2018)
Urenstand:

Technische specificaties
Afmeting invoer 300 x 580 mm
Afmeting invoerkanaal 300 x 320 mm
Trechter geschikt voor kraan invoer, hydraulisch opklapbaar
Schijf 960 x 58 mm
Aantal messen 2
Aantal tegenmessen 3
Snipperlengte 12 - 22 mm
Aandrijving aftakas 540eco/1000/ 1000 eco rpm
Toerental hakschijf 750 rpm
Invoersnelheid tot 0,7 m/s
Capaciteit tot 40 m3/uur
Benodigd vermogen 80-200 pk
Bakinhoud 13 m³
Draagvermogen tandem 16 ton
Scharnierhoogte 3,00 m
Banden 560/45R22.5 BKT FL-630

Nokka HK 4872 houtkraan
Hijsmoment bruto 48 kNm
Hefcapaciteit op 4 meter 892 kg
Maximaal bereik 7,2 meter
Rotator NR 5
Greentec Crab 8 tandengrijper
Zwenkmoment bruto 12 kNm

Besturing
GCS besturing ( Greentec Control System )
Radiografische afstandsbediening

Actiebebording voorzien van ledverlichting.
1,2mtr.breed 2mtr.hoog.
automatisch aan/uit bij op- of neerklappen.

= Meer informatie =

Schade: schadevrij
Garantie: Geen

Vertegenwoordiger: Sales Department (+31 (0)512 584 760)

To make your visit to our website more efficient, the description of this offer will be automatically translated for you. However, mistakes in this translation can not be excluded. Tractors and Machinery is not responsible for any mistranslations.

Intern reference number:

UM0001636
