Name: Greentec 952/20 Chipper combi / Snippercombi / Versnippercombi met Palfinger C60F86 houtkraan
Brand: Greentec
SKU: 804114
Availability: InStock

Item:: 804114
Manufacturer:: Greentec
Model:: 952/20 Chipper combi / Snippercombi / Versnippercombi met Palfinger C60F86 houtkraan
Building year:: 2015
Country:: Netherlands (the)
Price:: on request

Optional extras

Pull-type model

Equipped with chip-box / chip-trailer

Description

Show translation Show original description

Greentec 952/20 wood chipper-chipper combination
Wood chipper/chipper-chipper combination with hydr. crane
Tandem chassis, 4- feed rollers

Year built: 2015
Readable hours: 1492 hours
Feed opening: 600 x 1250 mm
Maximum feed: 520 x 850 mm
Drum: Ø 960 x 730 mm
Upper roller: Ø 500 x 850 mm
Bottom roller: Ø 300 x 850 mm
Standing feed rollers: Ø 300 x 610 mm
Drive: 850 eco or 1000 rpm
Number of blades: 3
Number of counter blades: 1
Power requirements: 140/ 280 hp

Greentec high tipper chassis:
Capacity: 20 m3
Length: 8.60 m
Width: 2.55 m
Height: 3.70-3.85 m
Capacity: 20 m³
Tires: 600/55R26.5 BKT FL-630
Hinge height: 3.40-3.55 m
TÜV 40 km/h version for Germany,
Air braked axles,
K80 clutch
Mechanical/hydraulic steered rear axle,

Multi-control Joystick steering.

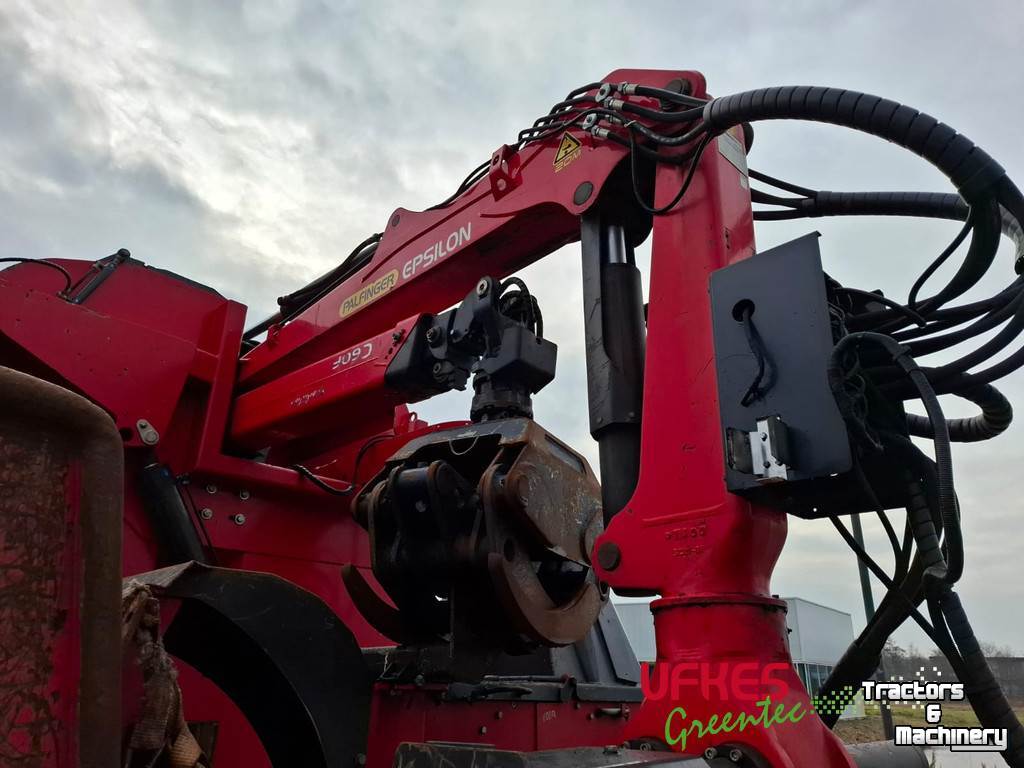

Palfinger C60F86 lumber crane
Reach (m): 8.6
Extension length: 3.4 m
Gross lifting moment: 82 kNm
Net lifting torque: 61 kNm
Lifting capacity at max range (kg) without gripper and rotator: 670 kg

=More information =

Warranty: None
Price: On request
Greentec 952/20 houtversnipperaar combinatie
Houthakselaar / Versnipperaar-kipper combinatie met hydr. kraan
Tandem chassis, 4- invoerrollen

Bouwjaar: 2015
Af te lezen urenstand: 1492 uur
Invoeropening: 600 x 1250 mm
Maximale invoer: 520 x 850 mm
Drum: Ø 960 x 730 mm
Bovenrol: Ø 500 x 850 mm
Onderrol: Ø 300 x 850 mm
Staande invoerrollen: Ø 300 x 610 mm
Aandrijving: 850 eco of 1000 rpm
Aantal messen: 3
Aantal tegen messen: 1
Benodigd vermogen: 140/ 280 pk

Greentec hoogkipper chassis:
Inhoud: 20 m3
Lengte: 8,60 m
Breedte: 2,55 m
Hoogte: 3,70-3,85 m
Inhoud: 20 m³
Banden: 600/55R26,5 BKT FL-630
Hoogte scharnier: 3,40-3,55 m
TÜV 40 km/u versie voor Duitsland,
Luchtgeremde assen,
K80 koppeling
mechanisch/hydraulisch gestuurde achteras.

Multi-controle Joystick besturing.

Palfinger C60F86 houtkraan
Reikwijdte (m): 8,6
Uitschuiflengte: 3,4 m
Hefmoment bruto: 82 kNm
Hefmoment netto: 61 kNm
Hefcapaciteit op max. bereik (kg) zonder grijper en rotator: 670 kg

= Meer informatie =

Garantie: Geen
Prijs: Op aanvraag
