Description

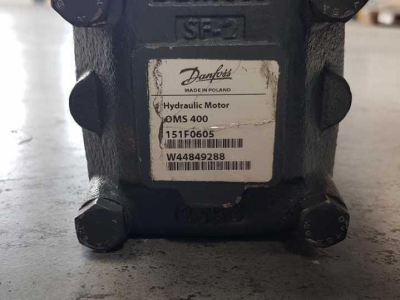

Danfoss OMS 400 Hydraulische motor
Toepassing: landbouw-, bosbouw- en bouwmachines, boorgereedschappen, zware hefwerktuigen en lieren en scheeps- en werfuitrusting
Toerental: laag
Koppel: hoog
Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
Combinaties: diverse flens- en as combinaties mogelijk
Technische specificaties:
Type: OMS
Orgineel nummer: 151F0605
Aansluiting C: 1/4" BSP
Aansluiting D: 1/2" BSP
Diameter as: 32 mm
Type as: recht
Max. capaciteit: 75 l/min
Nominale druk: 160 bar
Max. werkdruk: 190 bar
Piekdruk: 210 bar
Nominale koppel: 860 Nm
Afmeting L1: 178,5 mm
Afmeting L2: 200,5 mm
Afmeting L3: 222,8 mm
Flenstype (optioneel): 4 gats flens, pasrand 82,55 mm
Motorflens: 4 gats standaard flens
Slagvolume: 393 cc
Max. toerental: 190 RPM
Min. toerental: 5 RPM
Vermogen: 11 kW
Item 662601 Diverse new spare-parts
- Model:
- Hydraulische motor Danfoss OMS 400
- Product:
- Hydraulisch
- Country:
- Netherlands (the)
- Price:
- 450 EUR
